Descrição

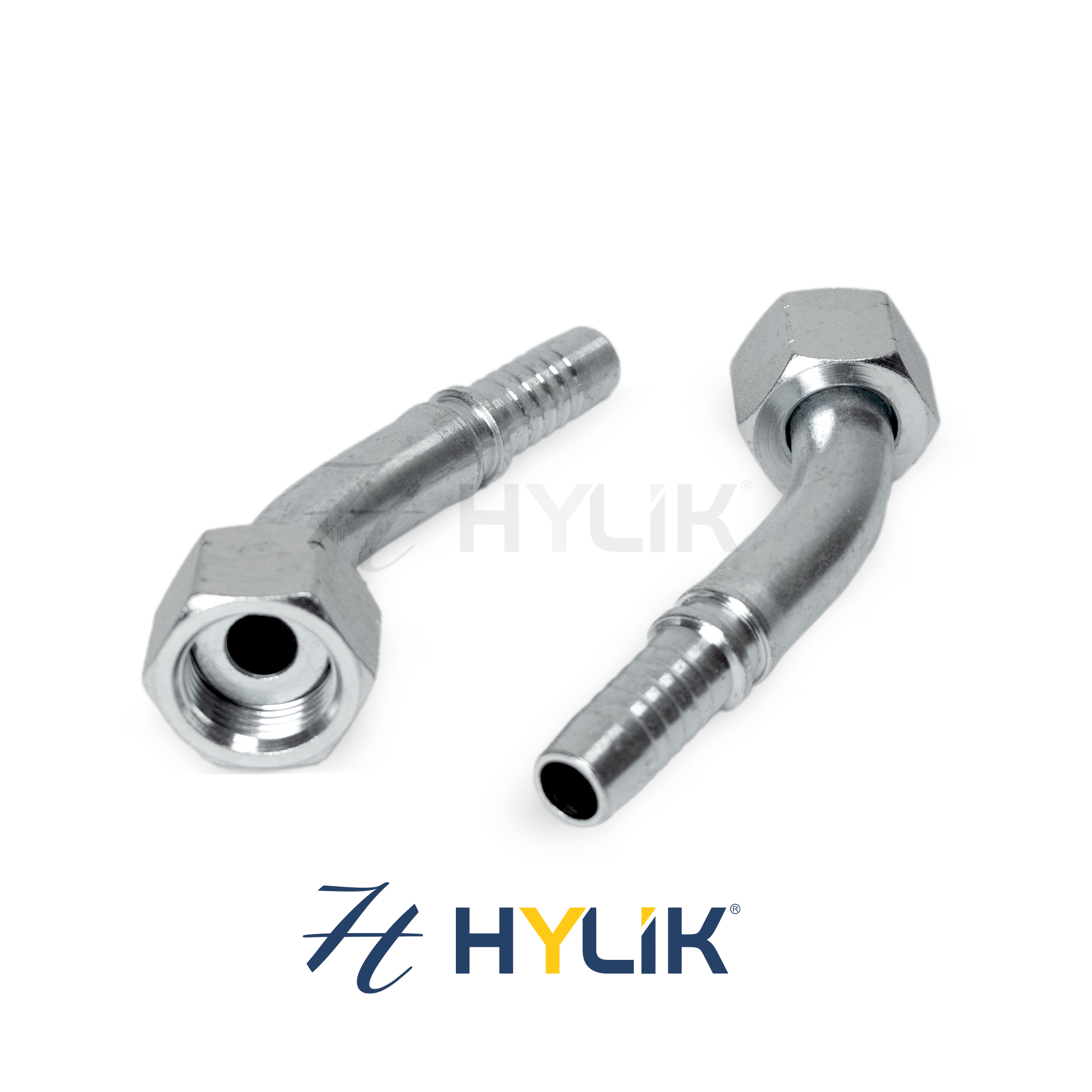

TERMINAL – FÊMEA GIRATÓRIA 45º ORFS
Vedação ORFS (O’ring Face Seal) Sede Plana.
Norma SAE J1453 – Rosca UNF (Unifided Nacional Fine).
| CÓD. HYLIK | ROSCA | MANGUEIRA | ||||
| POL | MM | TRAÇO | DN | TRAÇO | POL | |
| HFP450404 | 9/16 | 12,70 | -04 | 6 | -04 | 1/4 |
| HFP450406 | 9/16 | 12,70 | -04 | 10 | -06 | 3/8 |
| HFP450604 | 11/16 | 15,87 | -06 | 6 | -04 | 1/4 |
| HFP450606 | 11/16 | 15,87 | -06 | 10 | -06 | 3/8 |
| HFP450806 | 13/16 | 19,05 | -08 | 10 | -06 | 3/8 |
| HFP450808 | 13/16 | 19,05 | -08 | 12 | -08 | 1/2 |
| HFP451008 | 1 | 23,81 | -10 | 12 | -08 | 1/2 |
| HFP451010 | 1 | 23,81 | -10 | 16 | -10 | 5/8 |
| HFP451208 | 1.3/16 | 28,57 | -12 | 12 | -08 | 1/2 |
| HFP451210 | 1.3/16 | 28,57 | -12 | 16 | -10 | 5/8 |
| HFP451212 | 1.3/16 | 28,57 | -12 | 19 | -12 | 3/4 |
| HFP451612 | 1.7/16 | 34,13 | -16 | 19 | -12 | 3/4 |
| HFP451616 | 1.7/16 | 34,13 | -16 | 25 | -16 | 1 |
| HFP452016 | 1.11/16 | 40,48 | -20 | 25 | -16 | 1 |
| HFP452020 | 1.11/16 | 40,48 | -20 | 31 | -20 | 1.1/4 |
| HFP452420 | 2 | 48,42 | -24 | 31 | -20 | 1.1/4 |
| HFP452424 | 2 | 48,42 | -24 | 38 | -24 | 1.1/2 |
