Descrição

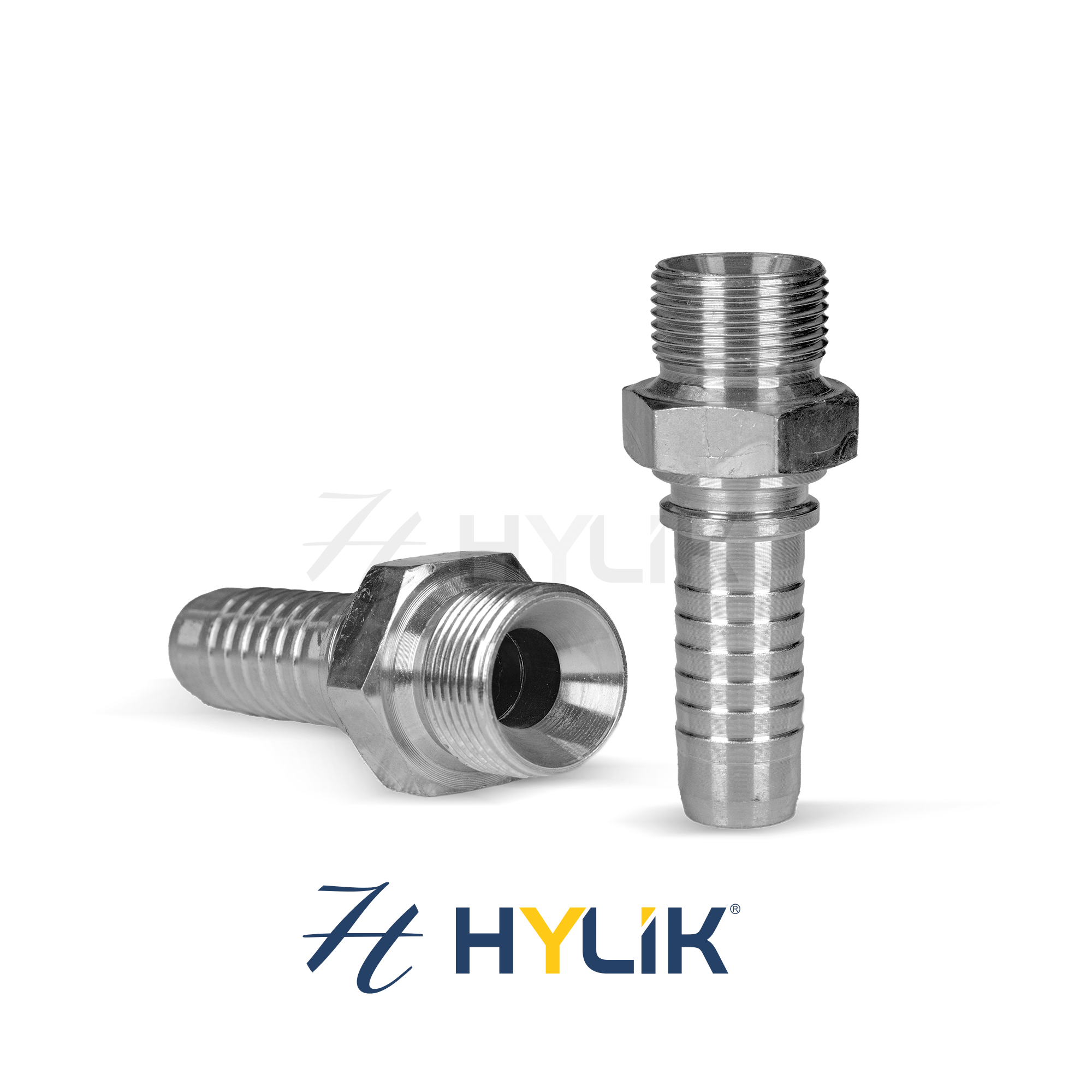

TERMINAL – MACHO BSPP
Rosca BSP (Britsh Standard Pipe).
Vedação Boleada 60º ou Anel Oring com junta de cobre.
| CÓD. HYLIK | ROSCA | MANGUEIRA | ||||
| POL | MM | TRAÇO | DN | TRAÇO | POL | |
| HMB0403 | 1/4 | 13,49 | -04 | 5 | -03 | 3/16 |
| HMB0404 | 1/4 | 13,49 | -04 | 6 | -04 | 1/4 |
| HMB0405 | 1/4 | 13,49 | -04 | 8 | -05 | 5/16 |
| HMB0604 | 3/8 | 16,66 | -06 | 6 | -04 | 1/4 |
| HMB0605 | 3/8 | 16,66 | -06 | 8 | -05 | 5/16 |
| HMB0606 | 3/8 | 16,66 | -06 | 10 | -06 | 3/8 |
| HMB0608 | 3/8 | 16,66 | -06 | 12 | -08 | 1/2 |
| HMB0806 | 1/2 | 20,63 | -08 | 10 | -06 | 3/8 |
| HMB0808 | 1/2 | 20,63 | -08 | 12 | -08 | 1/2 |
| HMB0810 | 1/2 | 20,63 | -08 | 16 | -10 | 5/8 |
| HMB1008 | 5/8 | 23,01 | -10 | 12 | -08 | 1/2 |
| HMB1010 | 5/8 | 23,01 | -10 | 16 | -10 | 5/8 |
| HMB128 | 3/4 | 26,19 | -12 | 12 | -08 | 1/2 |
| HMB1210 | 3/4 | 26,19 | -12 | 16 | -10 | 5/8 |
| HMB1212 | 3/4 | 26,19 | -12 | 19 | -12 | 3/4 |
| HMB1612 | 1 | 34,13 | -16 | 19 | -12 | 3/4 |
| HMB1616 | 1 | 34,13 | -16 | 25 | -16 | 1 |
| HMB2016 | 1.1/4 | 42,06 | -20 | 25 | -16 | 1 |
| HMB2020 | 1.1/4 | 42,06 | -20 | 31 | -20 | 1.1/4 |
| HMB2424 | 1.1/2 | 47,62 | -24 | 38 | -24 | 1.1/2 |
| HMB3232 | 2 | 59,53 | -32 | 51 | -32 | 2 |
