Descrição

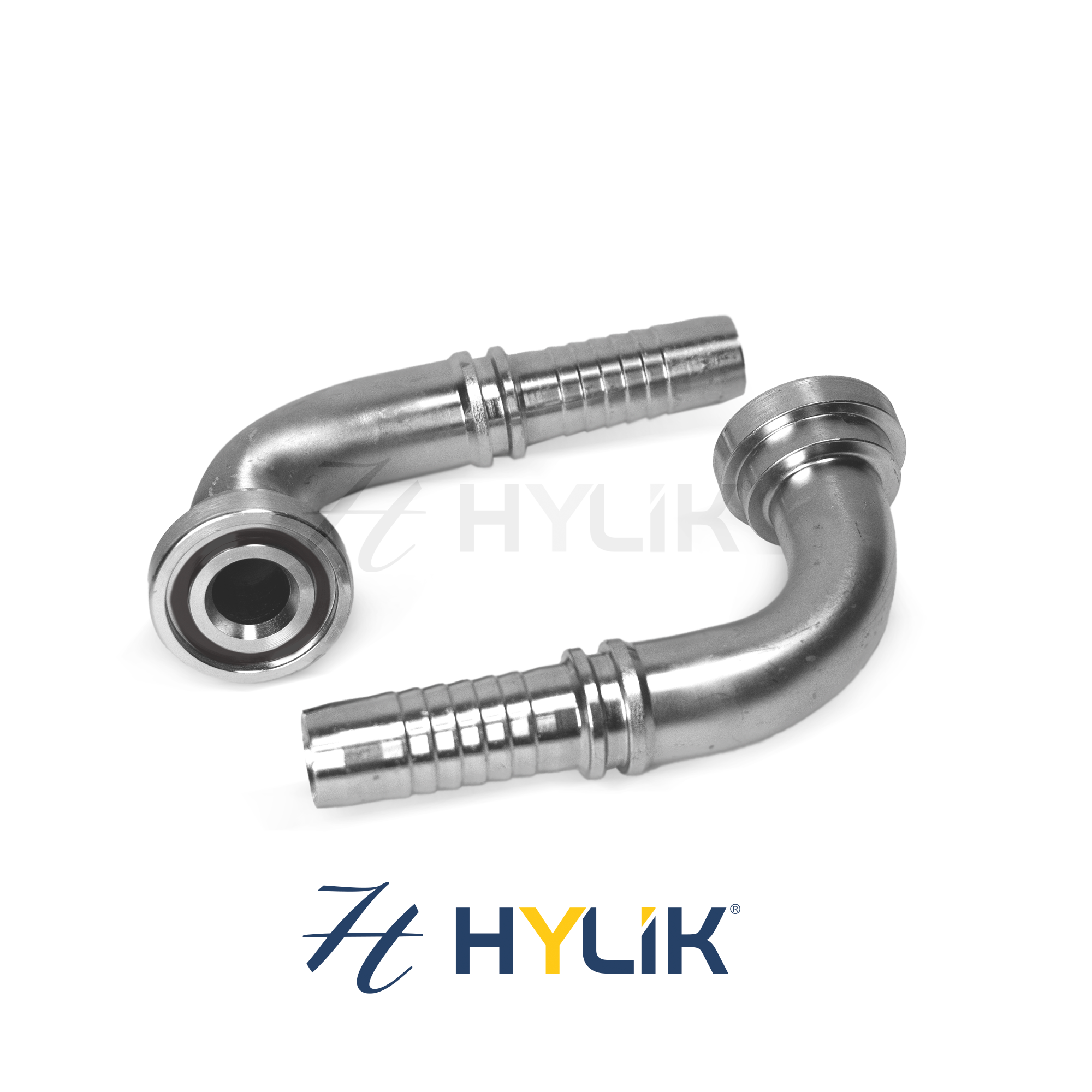

TERMINAL – SAE CÓD. 61 (3000 LBS) | 90°LONGO
SAE J516 / ISO 12151-3
| CÓD. HYLIK | ROSCA | MANGUEIRA | ||||||
| BOLACHA | POL. EXTERNO | MM EXTERNO | DN | TRAÇO | POL. | H. BOLACHA MM | H CURVA | |
| HFL190L1212H100 | 3/4 | 1.1/2 | 38,10 | 19 | -12 | 3/4 | 6.9 | 100,00 |
| HFL190L1612H100 | 1 | 1.3/4 | 44,40 | 19 | -12 | 3/4 | 8.1 | 100,00 |
| HFL190L1616H100 | 1 | 1.3/4 | 44,40 | 25 | -16 | 1 | 8.1 | 100,00 |
| HFL190L2016H100 | 1.1/4 | 2 | 50,80 | 25 | -16 | 1 | 8.1 | 100,00 |
| HFL190L2020H100 | 1.1/4 | 2 | 50,80 | 31 | -20 | 1.1/4 | 8.1 | 100,00 |
| HFL190L2424H100 | 1.1/2 | 2.3/8 | 60,30 | 39 | -24 | 1.1/2 | 8.1 | 100,00 |
| HFL190L1212H110 | 3/4 | 1.1/2 | 38,10 | 19 | -12 | 3/4 | 6.9 | 110,00 |
| HFL190L1612H110 | 1 | 1.3/4 | 44,40 | 19 | -12 | 3/4 | 8.1 | 110,00 |
| HFL190L1616H110 | 1 | 1.3/4 | 44,40 | 25 | -16 | 1 | 8.1 | 110,00 |
| HFL190L2016H110 | 1.1/4 | 2 | 50,80 | 25 | -16 | 1 | 8.1 | 110,00 |
| HFL190L2020H110 | 1.1/4 | 2 | 50,80 | 31 | -20 | 1.1/4 | 8.1 | 110,00 |
| HFL190L1212H120 | 3/4 | 1.1/2 | 38,10 | 19 | -12 | 3/4 | 6.9 | 120,00 |
| HFL190L1612H120 | 1 | 1.3/4 | 44,40 | 19 | -12 | 3/4 | 8.1 | 120,00 |
| HFL190L1616H120 | 1 | 1.3/4 | 44,40 | 25 | -16 | 1 | 8.1 | 120,00 |
| HFL190L2016H120 | 1.1/4 | 2 | 50,80 | 25 | -16 | 1 | 8.1 | 120,00 |
| HFL190L2020H120 | 1.1/4 | 2 | 50,80 | 31 | -20 | 1.1/4 | 8.1 | 120,00 |
| HFL190L1616H125 | 1 | 1.3/4 | 44,40 | 25 | -16 | 1 | 8.1 | 125,00 |
| HFL190L2016H125 | 1.1/4 | 2 | 50,80 | 25 | -16 | 1 | 8.1 | 125,00 |
| HFL190L2020H125 | 1.1/4 | 2 | 50,80 | 31 | -20 | 1.1/4 | 8.1 | 125,00 |
| HFL190L1212H130 | 3/4 | 1.1/2 | 38,10 | 19 | -12 | 3/4 | 6.9 | 130,00 |
| HFL190L1612H130 | 1 | 1.3/4 | 44,40 | 19 | -12 | 3/4 | 8.1 | 130,00 |
| HFL190L1616H130 | 1 | 1.3/4 | 44,40 | 25 | -16 | 1 | 8.1 | 130,00 |
| HFL190L2016H130 | 1.1/4 | 2 | 50,80 | 25 | -16 | 1 | 8.1 | 130,00 |
| HFL190L2020H130 | 1.1/4 | 2 | 50,80 | 31 | -20 | 1.1/4 | 8.1 | 130,00 |
| HFL190L2424H130 | 1.1/2 | 2.3/8 | 60,30 | 38 | -24 | 1.1/2 | 8.1 | 130,00 |
| HFL190L3232H130 | 2 | 2.7/8 | 71,40 | 51 | -32 | 2 | 8.1 | 130,00 |
| HFL190L1212H140 | 3/4 | 1.1/2 | 38,10 | 19 | -12 | 3/4 | 6.9 | 140,00 |
| HFL190L1612H140 | 1 | 1.3/4 | 44,40 | 19 | -12 | 3/4 | 8.1 | 140,00 |
| HFL190L1616H140 | 1 | 1.3/4 | 44,40 | 25 | -16 | 1 | 8.1 | 140,00 |
| HFL190L2016H140 | 1.1/4 | 2 | 50,80 | 25 | -16 | 1 | 8.1 | 140,00 |
| HFL190L2020H140 | 1.1/4 | 2 | 50,80 | 31 | -20 | 1.1/4 | 8.1 | 140,00 |
| HFL190L1212H160 | 3/4 | 1.1/2 | 38,10 | 19 | -12 | 3/4 | 6.9 | 160,00 |
| HFL190L1612H160 | 1 | 1.3/4 | 44,40 | 19 | -12 | 3/4 | 8.1 | 160,00 |
| HFL190L1616H160 | 1 | 1.3/4 | 44,40 | 25 | -16 | 1 | 8.1 | 160,00 |
| HFL190L2016H160 | 1.1/4 | 2 | 50,80 | 25 | -16 | 1 | 8.1 | 160,00 |
| HFL190L2020H160 | 1.1/4 | 2 | 50,80 | 25 | -16 | 1 | 8.1 | 160,00 |
